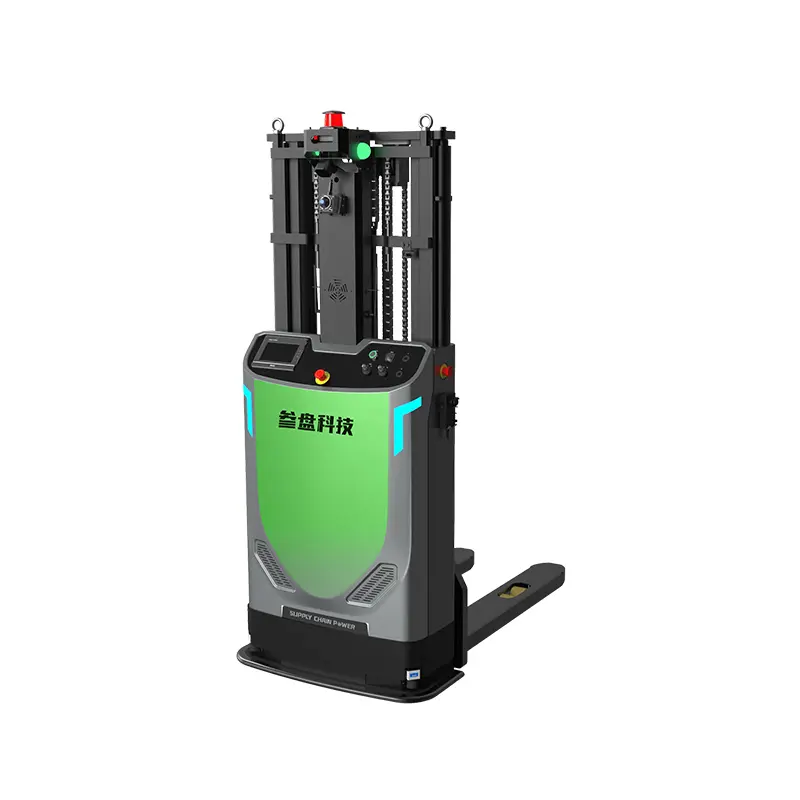

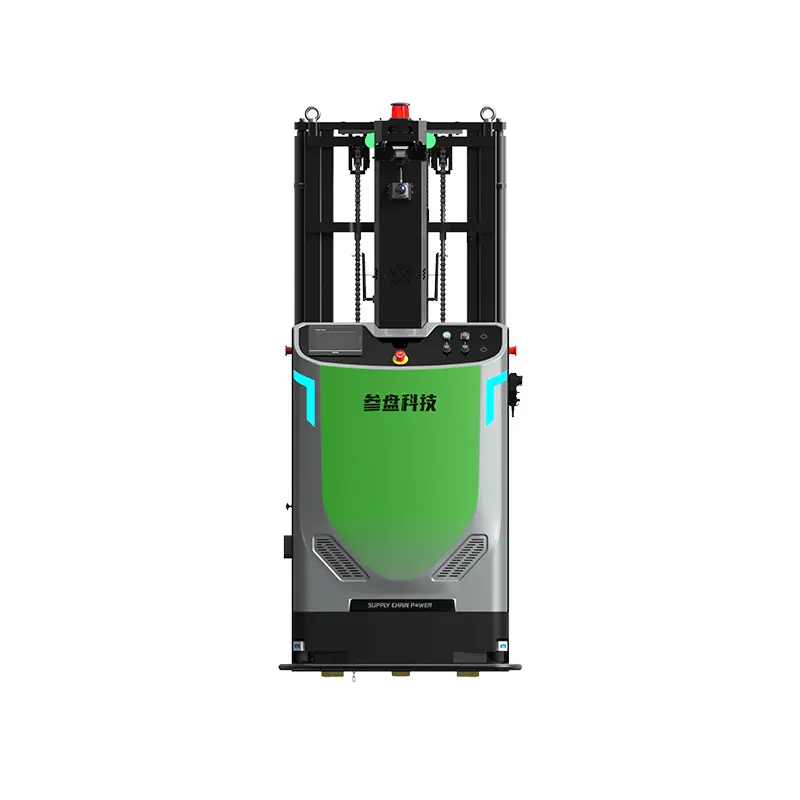

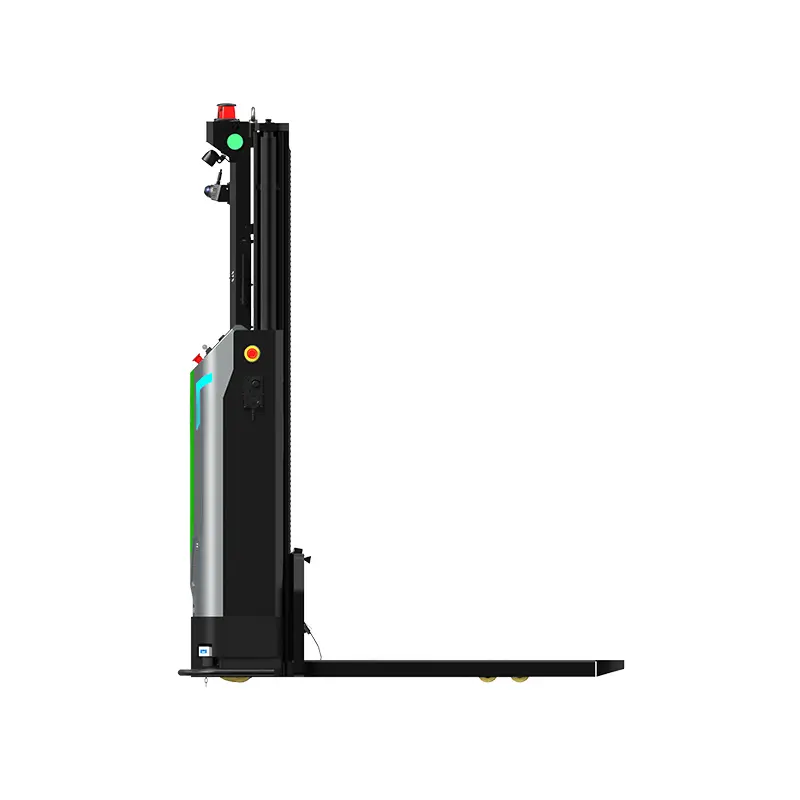

With a load capacity of up to 2 tons and fork heights ranging from 1.6m to 3m, this vehicle supports multi-layer stacking. Its 930mm width and 1270mm turning radius ensure smooth operation in constrained spaces.
Equipped to identify multiple pallet specifications, colors, and material racks/cages. High-precision identification from multiple angles ensures stable and adaptive pick-up and delivery.
Utilizes a mature servo solution for high reliability. Achieves measured positioning accuracy of ±5mm to ±10mm, meeting the most demanding operational requirements.
Features dual obstacle avoidance lasers, plug-in protection photoelectrics, and protective touch edges. Optional 3D safety LiDAR (Mid-360) provides complete volumetric protection.
Powered by a 24V / 212Ah battery. A quick 2-hour charge provides up to 10 hours of continuous battery life for maximum uptime.
Fully adaptable to your needs: customize fork width, vehicle height, color schemes, and branding logos to fit specific application scenarios.
| SFL-CDD20-Y Technical Specifications | Values / Standards | |
|---|---|---|
| Basic Parameters | ||
| Product Name | Laser SLAM stack-height smart forklift | SFL-CDD20-Y |
| Navigation Method | Laser SLAM | ±10 mm Accuracy |
| Rated Load Capacity | 2000 kg | Load Center: 600 mm |
| Lifting Height | 1600 / 3000 mm | Dual Options |
| Min Turning Radius | 1270 mm | Ultra-Narrow Chassis |
| Performance & Battery | ||
| Driving Speed | Full load / Empty load | 1.5 / 1.8 m/s |
| Battery Type | Lithium Iron Phosphate | 24 V / 212 Ah |
| Endurance / Charge | 10 Hours Runtime | 2 Hours Rapid Charge |
| Compliance & Safety | ||
| Global Standards | CE Marked (EN 1175:2020) | ANSI/ITSDF B56.5 |
| Safety Architecture | Dual Safety LiDARs | Cat.3, EN ISO 13849 PLd |
| Validation | Safety: ISO 3691-4 | Battery: UN 38.3 |
