01
🎯 SLAM Navigation
±10 mm Accuracy SLAM Navigation, no reflector for easy deployment.
02
⚡ High Efficiency
2 m/s maximum operation speed. No-load speed will not drop, ensuring peak performance.
03
🏋️ No Load Reduction
1.6 T load capacity with a 3 m lift height sustained without lowering load capability.
04
🛠️ Industrial Design
Modular design for operating panels and sensors, making it easier to disassemble and maintain.
05
📦 Vehicle Identification
High-precision identification for national, European, and non-standard pallets.
06
🛡️ Safe Escort
360° obstacle avoidance laser scanning matched with 3D cameras and safety touch edges.

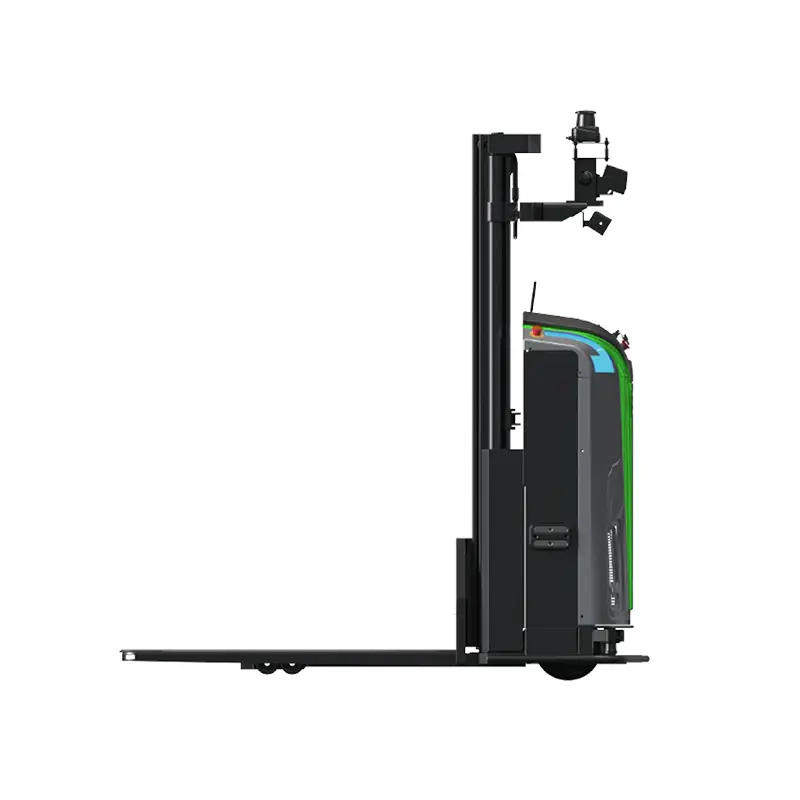

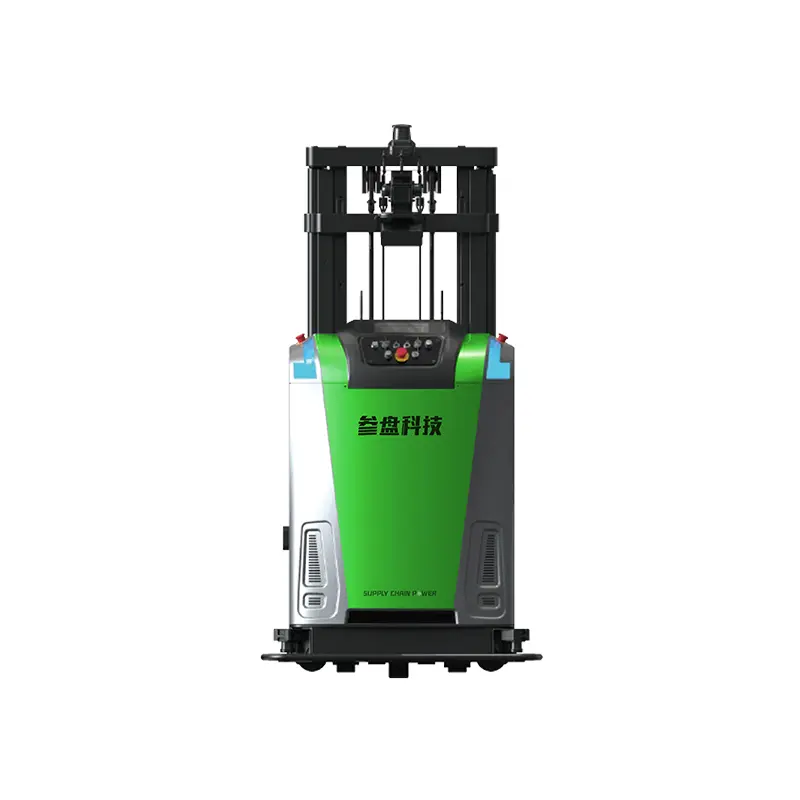

SFL-CDD16: The Efficiency Vanguard
Redefining warehouse productivity standards through cutting-edge automation technology.
📡 Advanced Navigation
• LiDAR-based SLAM (±10mm accuracy)
• Reflector-free deployment
• Reduces implementation time by 60%
💪 Heavy-Duty Lifting
• 1.6T payload capacity
• Zero derating at full 3m lift
• High-bay racking optimization
🔧 Maintenance Optimized
• Tool-less access to components
• 40% faster MTTR (Mean Time To Repair)
• Unified modular architecture
📊 Technical Excellence Summary
| Capability |
Benchmark |
| Navigation Accuracy |
±10 mm |
| Max Speed (Loaded) |
2 m/s |
| Lift Height @ 1.6T |
3.0 m |
| Recognition Standards |
3 Major Global Types |
| Maintenance Index |
40% Faster Downtime Recovery |
❓ Frequently Asked Questions
Q What navigation technology does SFL-CDD16 use?
It utilizes LiDAR-based SLAM navigation with ±10mm accuracy. It is completely reflector-free, requiring no special infrastructure, which reduces deployment time by 60%.
Q Does lifting height affect the load capacity?
No. The SFL-CDD16 features a zero-derating design, meaning it maintains its full 1.6T payload capacity even at the maximum 3-meter lift height.
Q Which pallet standards are supported?
The intelligent recognition system supports GB/T (China), ISO 6780 (Europe), and various non-standard pallet configurations with a 99.1% first-attempt engagement success rate.
Q What safety features are integrated?
Standard 360° laser scanning is included. Optional upgrades include 3D vision cameras, safety bumpers (IEC 61496), and proximity sensors to meet ANSI/ITSDF B56.5 requirements.
Q How is the maintenance handled?
The vehicle uses a modular industrial design with tool-less access to panels and sensors, resulting in a 40% faster Mean Time To Repair (MTTR) compared to conventional AGVs.
Q What is the maximum operation speed?
The SFL-CDD16 can reach a maximum no-load speed of 2 m/s, maintaining high efficiency without performance degradation during continuous operations.
